             Quality Regulations for Pneumatic Hydraulic Pumps

                Hydraulic pump for tensioning device-pneumatic hydraulic pump

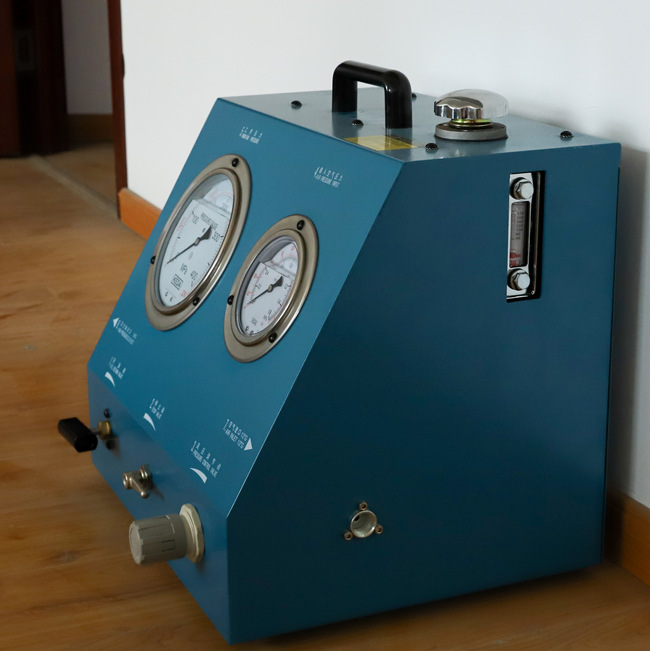

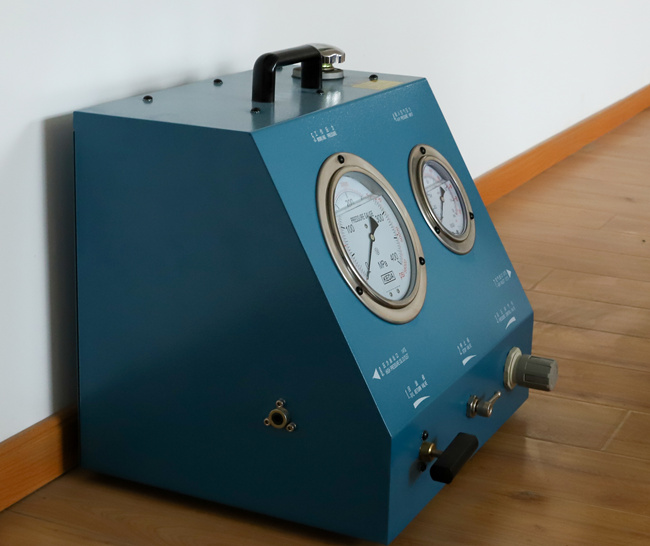

Pneumatic hydraulic pump model

AHP3500

The scope of application of this specification:

Air driven hydraulic pump designed to operate nut tightening pressure to 2200 bar.

For

K80ME-C, L80ME-C, S80ME-C, K90ME-C,

K90ME, L90ME-C, S90ME-C, K98ME-C, K98ME

Pumps used for the above purposes must comply with this quality specification

1. Design Standards

1.1 The total weight of the product must not exceed 30 kg. (except built-in hydraulic oil)

1.2 The fuel tank must be strong enough to withstand a 1-meter drop, pressure gauge not included.

2. use medium

Hydraulic oil or lubricating oil. The pump must be prepared for vegetable and hydraulic oils used in the food and pharmaceutical industries.

3. Hydraulic pressure

Working pressure: 3500 bar at 7 bar air pressure.

Pressure range: 0-3500 bar.

Automatic pressure stop: 2650bar.

The air flow must be greater than: 100 l/min.

Fuel tank volume greater than 6 liters

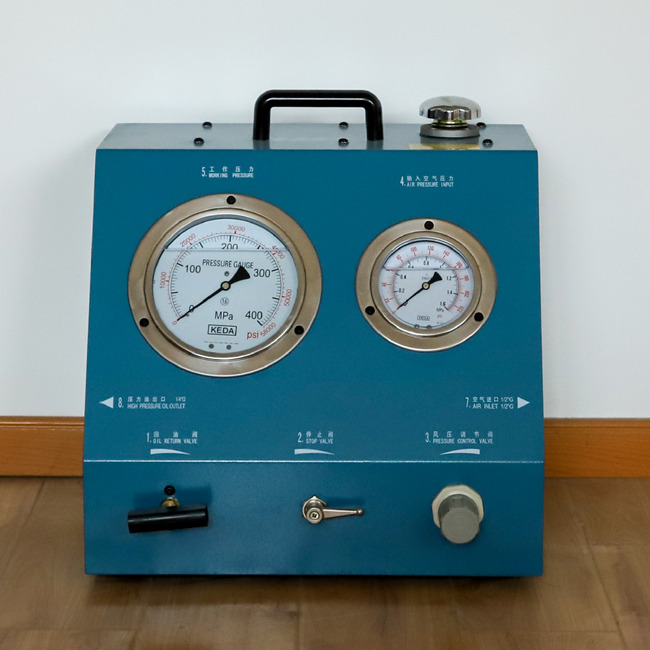

4. Appearance

1. The handle for controlling the intake pressure is clearly written.

2. The handle for controlling the hydraulic outlet pressure is clearly written.

3. Pressure relief handle with clear writing.

4. Oil pressure gauge

1. Lettering: oil pressure (or working pressure gauge)

2. The pressure value is plus or minus 40 bar

3. Scale: 4000/50 bar.

4. Pressure gauge diameter: 160mm

5. Type: Shockproof pressure gauge (shockproof fluid must be silicone oil)

6. Air pressure gauge

1. Scale: 10/1.0 bar.

2. Pressure gauge diameter: less than 100mm; greater than 40mm

Service life: The service life is not less than 100 hours under normal working pressure.

7. Air connection requirements:ISO 228/1-G1/2

8. Oil pressure connection requirements:ISO 228/1-G1/4 type: CEJN quick coupling 10.125.1203 (female), working pressure 2500 bar.

9. Requirements for instructions

1. Description of the pump.

2. How to use it safely.

3. How to connect the air supply system.

4. How to connect to the hydraulic jack.

6. Contact information of the after-sales service provider.

7. Spare parts list
