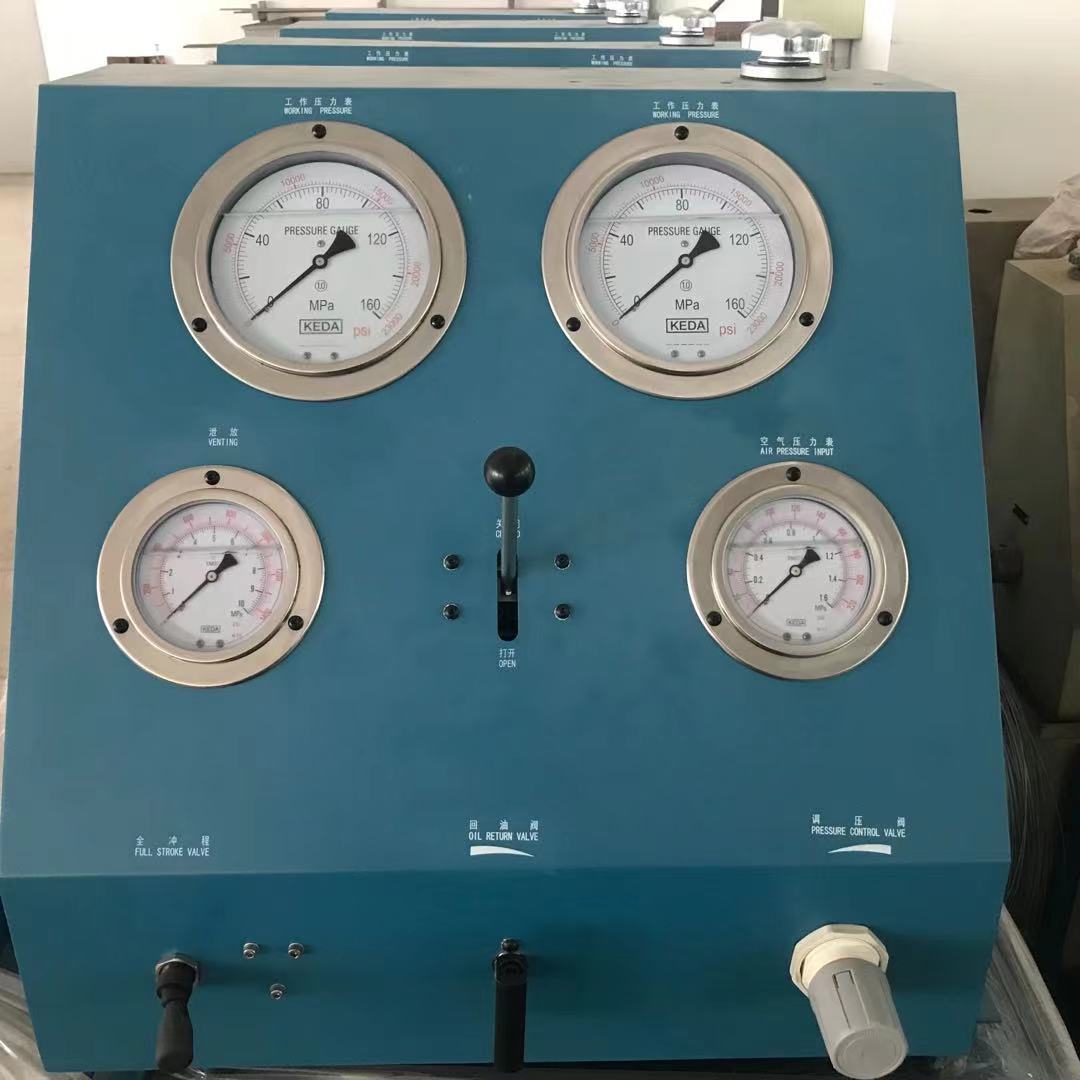

Fuel Valve Test Device

The category:Fuel Valve Test Device
Type:VTU-1100N

VTU-1100N is now standard maintenance equipment for new MAN Diesel Slide Fuel Valves.

Model:VTU-1100N

Fuel Valve Test Device

OUTPUT PRESSURE

MAX.1100 BAR AT 10BAR AIR INPUT.MAX.800BAR AT 7 BAR

AIR  CONSUMPTION

60.5 LITRES/CYCLE AT 10BAR INPUT.44 LITRES/CYCLE AT 7 BAR AND NO OUTPUT PRESSURE

MAX.FLOW AT NO PRESSURE

APPROX.1.2 LITRES/MIN.AT AN AIR INPUT OF 7 BAR UP

PUMPING SPEED

APPROX.60 CYCLES/MIN .AT 7 BAR UP AIR INPUT,AND NO OUTPUT PRESSURE

DISPLACEMENT PER CYCL

20ML

TANK CAPACITY

6 LITRES

WEIGHT

90KGS.EMPTY.

DIMENSIONS

560*950*1525mm
